Applications of Fiber Arrays in Optical Communications

Fiber Arrays (FAs) are critical components in optical communication systems, enabling precise alignment and efficient coupling of multiple optical fibers to various photonic devices. By providing a compact and reliable interface for multi-channel optical signal transmission, FAs have become indispensable in applications ranging from telecommunications to sensing.

This article explores the diverse applications of FAs, focusing on their roles in Planar Lightwave Circuits (PLCs), Arrayed Waveguide Gratings (AWGs), Micro-Electro-Mechanical Systems (MEMS), multi-channel optical modules, and optical sensors. Each application highlights the technical advantages of FAs and their contribution to advancing optical communication technologies.

Planar Lightwave Circuits (PLCs)

Planar Lightwave Circuits (PLCs) are integrated photonic devices that manipulate optical signals on a planar substrate, typically silica or silicon. FAs are essential in PLCs for coupling multiple optical fibers to the input and output waveguides of the circuit. The precise alignment of fibers in an FA ensures low insertion loss and high coupling efficiency, which are critical for maintaining signal integrity in high-speed optical networks.

In PLC-based devices such as optical splitters, couplers, and wavelength division multiplexers (WDMs), FAs enable the simultaneous connection of multiple channels, supporting dense wavelength division multiplexing (DWDM) systems. For instance, in a 1xN splitter, an FA aligns a single input fiber with multiple output waveguides, distributing the optical signal across several channels. The uniformity of the FA's fiber pitch and the accuracy of its alignment with the PLC waveguides minimize crosstalk and ensure consistent performance across all channels.

FAs also enhance the scalability of PLCs. As optical networks evolve to handle higher data rates and more channels, FAs with tighter pitch tolerances (e.g., 127 µm or 250 µm) allow for denser integration of fibers, supporting compact and cost-effective designs. Moreover, FAs can be customized with angled or polished endfaces to reduce back-reflection, further improving the performance of PLC-based systems in long-haul and metro networks.

Arrayed Waveguide Gratings (AWGs)

Arrayed Waveguide Gratings (AWGs) are key components in DWDM systems, used for multiplexing and demultiplexing optical signals across multiple wavelengths. FAs play a pivotal role in AWGs by providing a reliable interface between the optical fibers and the input/output waveguides of the AWG chip. The FA aligns multiple fibers in a linear or two-dimensional array, matching the waveguide spacing on the AWG to ensure efficient signal transfer.

In an AWG, the FA must maintain sub-micron alignment accuracy to minimize insertion loss and polarization-dependent loss (PDL). For example, in a 40-channel AWG, the FA aligns 40 fibers with the corresponding waveguides, each carrying a specific wavelength. Any misalignment can lead to signal degradation, increased crosstalk, or reduced channel isolation. Advanced FA manufacturing techniques, such as V-groove substrates and precision polishing, ensure that the fiber positions are maintained with high accuracy, even in high-channel-count systems.

FAs also enable the integration of AWGs into compact modules for data centers and telecommunications networks. By using two-dimensional FAs, AWGs can support bidirectional transmission or higher channel counts in a smaller footprint. Additionally, FAs with low-skew designs ensure uniform optical path lengths across all channels, which is critical for maintaining signal synchronization in coherent communication systems.

Micro-Electro-Mechanical Systems (MEMS)

Micro-Electro-Mechanical Systems (MEMS) are widely used in optical communication for applications such as optical switches, variable optical attenuators (VOAs), and cross-connects. FAs are integral to MEMS-based systems, providing a high-density interface for coupling multiple optical fibers to the MEMS device's input and output ports.

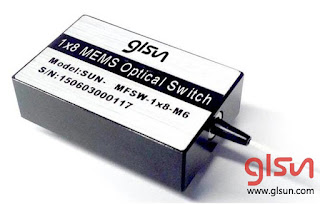

In a MEMS optical switch, for instance, an FA aligns fibers with a movable mirror array that redirects optical signals between different ports. The FA's precise fiber positioning ensures that the optical beams are accurately coupled to the MEMS mirrors, minimizing insertion loss and crosstalk. The compact design of FAs also allows for the integration of multiple channels in a single MEMS device, enabling high-port-count switches for data center interconnects or reconfigurable optical add-drop multiplexers (ROADMs).

FAs in MEMS systems must withstand mechanical stresses and environmental variations, as the devices often operate in dynamic conditions. To address this, FAs are designed with robust materials, such as borosilicate glass or silicon V-grooves, and are often hermetically sealed to protect against humidity and temperature fluctuations. These features ensure long-term reliability and consistent performance in demanding applications.

Multi-Channel Optical Modules

Multi-channel optical modules, such as transceivers and parallel optical interconnects, are critical for high-speed data transmission in data centers, cloud computing, and 5G networks. FAs are used in these modules to couple multiple fibers to photonic integrated circuits (PICs) or laser/photodetector arrays, enabling parallel transmission of multiple data streams.

In a 400G QSFP-DD transceiver, for example, an FA aligns eight fibers (four for transmit and four for receive) with a PIC or vertical-cavity surface-emitting laser (VCSEL) array. The FA ensures precise alignment between the fibers and the optical components, supporting high-bandwidth applications such as 4x100G or 8x50G configurations. The use of FAs reduces the module's size and complexity, as they eliminate the need for individual fiber alignment, streamlining the assembly process.

FAs also enhance the thermal and mechanical stability of optical modules. By using materials with low coefficients of thermal expansion (CTE), such as silica or ceramic, FAs maintain alignment accuracy over a wide temperature range, ensuring reliable performance in harsh environments. Additionally, FAs with integrated lenses or tapered fiber ends can improve coupling efficiency, reducing power consumption and enhancing the module's energy efficiency.

Optical Sensors

Beyond telecommunications, FAs are increasingly used in optical sensing applications, including fiber-optic sensing systems for structural health monitoring, environmental sensing, and medical diagnostics. In these systems, FAs enable the simultaneous interrogation of multiple sensing points, improving the system's resolution and scalability.

In a fiber Bragg grating (FBG) sensor array, for example, an FA couples multiple fibers to a spectrometer or interrogator, each fiber carrying signals from a specific FBG sensor. The FA's precise alignment ensures that the reflected wavelengths from each sensor are accurately detected, enabling high-resolution measurements of strain, temperature, or pressure. The ability to integrate multiple fibers in a single FA also reduces the system's complexity and cost, making it suitable for large-scale deployments in civil engineering or oil and gas industries.

FAs are also used in distributed sensing systems, such as those based on Brillouin or Raman scattering. In these applications, the FA connects multiple fibers to a single laser source or detector, allowing the system to monitor multiple sensing locations simultaneously. The high-density and low-loss characteristics of FAs make them ideal for applications requiring long-distance or high-sensitivity measurements.

Conclusion

Fiber Arrays (FAs) are versatile components that underpin a wide range of applications in optical communications and sensing. From enabling high-density coupling in PLCs and AWGs to supporting dynamic switching in MEMS systems, FAs provide the precision, reliability, and scalability needed for modern photonic systems. In multi-channel optical modules, FAs facilitate high-speed data transmission, while in optical sensors, they enhance measurement accuracy and system efficiency. As optical communication technologies continue to evolve, FAs will remain a cornerstone of innovation, driving advancements in telecommunications, data centers, and beyond.

What Is a Fiber Array and Why Is It Essential in Optical Communications?

A Fiber Array is an optical component designed to align multiple optical fibers in a precise, organized manner to facilitate efficient light transmission between optical devices. It serves as an interface that couples light from one optical component (e.g., a waveguide, laser, or photonic integrated circuit) to another with minimal loss and high accuracy. Fiber Arrays are indispensable in applications requiring high-density optical connections, such as telecommunications, data centers, and integrated photonics.

The primary function of a Fiber Array is to maintain precise alignment of optical fibers, ensuring that light signals are transmitted with minimal attenuation and crosstalk. This is achieved through meticulous engineering of the FA’s structure, which accommodates multiple fibers in a compact and robust configuration. As optical communication systems demand higher bandwidth and faster data rates, Fiber Arrays have become critical for enabling scalable, high-performance solutions.

Structure of a Fiber Array

The construction of a Fiber Array is a marvel of precision engineering, designed to ensure optimal performance in demanding optical environments. The key components of a typical Fiber Array include:

1. Lid

The lid is a protective cover, usually made of glass, ceramic, or a similar material, that secures the optical fibers in place. The lid ensures that the fibers remain aligned within the array and protects them from environmental factors such as dust, moisture, and mechanical stress. The lid is carefully bonded to the substrate to maintain the structural integrity of the FA.

2. V-Groove Substrate

The V-groove substrate is the heart of the Fiber Array, providing precise alignment for the optical fibers. This substrate, typically made from silicon, glass, or ceramic, features a series of V-shaped grooves etched with sub-micron accuracy. Each groove holds an individual optical fiber, ensuring that the fibers are positioned with high precision to align with the optical input/output of connected devices. The V-groove design minimizes misalignment and ensures consistent performance across all channels.

3. Ribbon Fiber

Ribbon fiber refers to a bundle of multiple optical fibers arranged in a flat, ribbon-like configuration. In Fiber Arrays, ribbon fibers are commonly used to achieve high-density connections. The fibers are stripped of their protective coatings and placed into the V-grooves, where they are secured using adhesive or epoxy. Ribbon fibers enable the simultaneous alignment of multiple channels, making them ideal for applications requiring parallel data transmission.

4. Adhesive and Bonding Materials

High-quality adhesives, such as UV-curable epoxy, are used to bond the fibers, V-groove substrate, and lid together. These materials must exhibit low shrinkage, high thermal stability, and excellent optical transparency to avoid signal degradation. The bonding process is critical to maintaining the mechanical and optical integrity of the Fiber Array.

5. Polished Endface

The endface of the Fiber Array, where the fibers interface with other optical components, is meticulously polished to achieve a smooth, flat surface. This polishing minimizes back-reflection and ensures efficient light coupling. The endface may also be angled (e.g., 8°) to further reduce reflection losses in specific applications.

The combination of these components results in a robust and precise Fiber Array capable of supporting high-performance optical systems.

Types of Fiber Arrays

Fiber Arrays are available in various configurations to meet the diverse needs of optical communication systems. The main types include:

1. 1D Fiber Arrays

One-dimensional (1D) Fiber Arrays consist of a single row of optical fibers aligned in V-grooves. These are the most common type of FA, used in applications requiring a linear arrangement of fibers, such as coupling to photonic integrated circuits (PICs) or arrayed waveguide gratings (AWGs). 1D Fiber Arrays are available in various channel counts, typically ranging from 2 to 64 fibers.

2. 2D Fiber Arrays

Two-dimensional (2D) Fiber Arrays feature multiple rows of fibers arranged in a grid-like pattern. These are used in applications requiring higher channel density, such as advanced photonic devices or free-space optics. 2D Fiber Arrays are more complex to manufacture due to the need for precise alignment in both the X and Y axes, but they enable compact, high-capacity optical interfaces.

3. Polarization-Maintaining (PM) Fiber Arrays

Polarization-maintaining Fiber Arrays are designed for applications where the polarization state of the light must be preserved, such as in coherent communication systems or optical sensing. These FAs use PM fibers, which are aligned with precise angular orientation to maintain polarization integrity.

4. High-Channel-Count Fiber Arrays

High-channel-count Fiber Arrays are designed for applications requiring a large number of optical channels, such as in hyperscale data centers or wavelength-division multiplexing (WDM) systems. These FAs can accommodate dozens or even hundreds of fibers, offering scalability for next-generation optical networks.

5. Custom Fiber Arrays

In addition to standard configurations, custom Fiber Arrays can be designed to meet specific application requirements. These may include unique channel spacings, fiber types, or specialized endface geometries. Custom FAs are often used in research, aerospace, and medical applications.

Each type of Fiber Array is engineered to address specific technical challenges, making them versatile components in the optical communication ecosystem.

Applications of Fiber Arrays

Fiber Arrays are integral to a wide range of applications in optical communications and beyond. Some key applications include:

1. Telecommunications

In telecommunications, Fiber Arrays are used to couple optical fibers to photonic devices such as transceivers, multiplexers, and demultiplexers. They enable high-speed data transmission in fiber-optic networks, supporting the backbone of modern internet infrastructure.

2. Data Centers

Data centers rely on Fiber Arrays to facilitate high-density optical interconnects between servers, switches, and storage systems. FAs enable scalable, low-latency connections critical for cloud computing and big data processing.

3. Photonic Integrated Circuits (PICs)

Fiber Arrays are essential for interfacing optical fibers with PICs, which integrate multiple optical functions (e.g., lasers, modulators, and detectors) on a single chip. FAs ensure precise alignment between the fibers and the PIC’s waveguides, enabling efficient light coupling.

4. Optical Sensing

In optical sensing applications, such as fiber-optic gyroscopes or distributed sensing systems, Fiber Arrays provide reliable alignment for multi-channel optical signals. They are used in industries ranging from aerospace to environmental monitoring.

5. Medical and Biomedical Applications

Fiber Arrays are employed in medical devices, such as endoscopes and laser delivery systems, where precise optical alignment is critical for imaging or therapeutic purposes.

These applications highlight the versatility and importance of Fiber Arrays in advancing optical technologies across industries.

While Fiber Arrays are highly effective, their manufacturing and integration present challenges. Achieving sub-micron alignment accuracy, ensuring long-term reliability, and scaling production for high-channel-count FAs require advanced fabrication techniques and stringent quality control. Additionally, as optical systems move toward higher integration and miniaturization, Fiber Arrays must evolve to support smaller form factors and denser channel configurations.

Looking ahead, advancements in materials science, such as low-loss adhesives and high-precision substrates, are expected to enhance FA performance. The rise of silicon photonics and co-packaged optics will further drive demand for compact, high-density Fiber Arrays. Moreover, innovations in automation and machine vision are streamlining FA production, reducing costs and improving scalability.

Applications of Fiber Bypass Modules in Modern Optical Networks

In the rapidly evolving landscape of optical communication, maintaining network uptime and performance is paramount. Optical bypass modules, also known as fiber bypass modules, are specialized devices designed to reroute optical signals around network equipment, ensuring uninterrupted data transmission during maintenance, failures, or specific operational requirements. These modules are pivotal in applications such as inline traffic monitoring, inline security, load balancing, network acceleration, optical switching, and network tapping.

Inline Traffic Monitoring

Inline traffic monitoring is a cornerstone of network management, enabling operators to analyze data flows in real time without affecting network performance. Fiber bypass modules play a crucial role in this application by allowing monitoring tools to be inserted into or removed from the network path seamlessly.

In a typical setup, a fiber bypass module is integrated with a network tap or monitoring device. When active, the module directs optical signals to the monitoring equipment, which analyzes metrics such as bandwidth usage, latency, and packet loss. During maintenance or if the monitoring device fails, the Fiber bypass module reroutes traffic directly to its destination, bypassing the monitoring tool. This ensures continuous network operation without downtime.

For instance, in data centers, optical bypass modules enable real-time traffic analysis to detect anomalies or optimize resource allocation. By maintaining a passive optical path during bypass mode, these modules minimize signal loss and latency, ensuring high-fidelity monitoring without compromising network integrity. This application is particularly valuable in high-traffic environments like financial institutions or cloud service providers, where uninterrupted data flow is critical.

Inline Security

Network security is a top priority in optical communication systems, especially with the rise of cyber threats targeting sensitive data. Optical bypass modules enhance inline security by integrating with intrusion detection and prevention systems (IDPS) or firewalls. These modules allow security appliances to inspect traffic in real time while providing a fail-safe mechanism to maintain network connectivity.

In an inline security setup, the fiber bypass module directs optical signals to the security appliance for inspection. The appliance analyzes packets for malicious activity, such as malware or unauthorized access attempts. If the security device becomes overloaded or fails, the fiber bypass module automatically reroutes traffic, bypassing the appliance to prevent network disruption. This is known as a "fail-to-wire" mechanism, ensuring that security checks do not become a single point of failure.

For example, in enterprise networks, fiber bypass modules enable continuous monitoring for threats while maintaining high availability. In scenarios where deep packet inspection is required, such as in government or military networks, these modules ensure that security protocols are enforced without introducing latency or risking network downtime.

Load Balancing

Load balancing is essential for optimizing network performance by distributing traffic across multiple servers or paths. Fiber bypass modules facilitate load balancing by enabling dynamic rerouting of optical signals to alternate paths or devices based on traffic demands or equipment status.

In a load-balanced network, fiber bypass modules can redirect traffic to secondary servers or links when primary resources are overloaded. This ensures equitable distribution of data, preventing bottlenecks and enhancing user experience. For instance, in content delivery networks (CDNs), fiber bypass modules can reroute traffic to geographically closer servers, reducing latency and improving data delivery speeds.

Moreover, fiber bypass modules support maintenance operations by allowing administrators to take specific servers offline without disrupting the network. By bypassing the offline server, the module ensures that traffic is redirected to active resources, maintaining service continuity. This application is particularly valuable in large-scale cloud computing environments, where load balancing is critical to handling dynamic workloads.

Network Acceleration

Network acceleration focuses on improving data transmission speeds and reducing latency, particularly in high-performance computing or latency-sensitive applications. Fiber bypass modules contribute to network acceleration by minimizing the processing overhead introduced by intermediate devices.

In a typical network acceleration scenario, fiber bypass modules are used to bypass non-essential equipment, such as redundant routers or switches, during high-traffic periods. By creating a direct optical path, these modules reduce latency and signal degradation, enabling faster data transfer. For example, in financial trading networks, where milliseconds can impact transaction outcomes, fiber bypass modules ensure that data travels through the shortest possible path, optimizing performance.

Additionally, fiber bypass modules support the integration of acceleration appliances, such as WAN optimizers, by allowing these devices to be inserted into the network path only when needed. During normal operation or in case of appliance failure, the module bypasses the optimizer, ensuring uninterrupted data flow. This flexibility makes optical bypass modules indispensable in applications requiring ultra-low latency, such as real-time video streaming or online gaming.

Optical Switching

Optical switching is a key function in modern optical networks, enabling dynamic reconfiguration of network paths to meet changing demands. Optical bypass modules are integral to optical switching by providing a mechanism to redirect signals between different network segments or devices.

In optical switching applications, fiber bypass modules act as intelligent relays, directing optical signals to specific paths based on network requirements. For example, in a wavelength-division multiplexing (WDM) system, an optical bypass module can reroute specific wavelengths to alternate routes, optimizing bandwidth usage. This is particularly useful in metropolitan area networks (MANs) or long-haul networks, where traffic patterns vary dynamically.

Fiber bypass modules also enhance network resilience by enabling rapid failover to backup paths in case of link failures. By maintaining a passive optical path during bypass, these modules ensure minimal signal loss and high reliability. This application is critical in telecom networks, where optical switching supports the delivery of high-speed internet, voice, and video services.

Network Tapping

Network tapping involves capturing and analyzing data flows for diagnostic, compliance, or forensic purposes. Optical bypass modules are widely used in network tapping to provide non-intrusive access to optical signals without disrupting the primary data path.

In a network tapping setup, a fiber bypass module splits the optical signal, sending a copy to a monitoring device while allowing the original signal to continue to its destination. This ensures that tapping does not introduce latency or affect network performance. For example, in compliance-driven industries like healthcare or finance, optical bypass modules enable passive monitoring to ensure adherence to regulatory standards without impacting service delivery.

Furthermore, fiber bypass modules support scalable tapping solutions by allowing multiple monitoring devices to be integrated into the network. During maintenance or device failure, the module bypasses the tap, ensuring uninterrupted data flow. This application is vital for network operators seeking to maintain visibility into their infrastructure while ensuring high availability.

Fiber bypass modules are versatile components that underpin the reliability and efficiency of modern optical networks. Their applications in inline traffic monitoring, inline security, load balancing, network acceleration, optical switching, and network tapping demonstrate their critical role in addressing diverse network challenges. By providing seamless signal rerouting, fiber bypass modules ensure uninterrupted data flow, enhance security, and optimize performance. As optical communication networks continue to evolve, the importance of fiber bypass modules in enabling flexible, resilient, and high-performance networks will only grow.

GLSUN is offering comprehensive solutions from TO packaging, chips, and optical engines to optical switches. GLSUN independently develops, manufactures, and tests its products, supporting customized 1.25G/10G/40G/100G bypass modules to meet diverse network demands.

What Is an Optical Bypass Module?

In the rapidly evolving landscape of optical communication, the demand for reliable, high-speed, and fault-tolerant network infrastructure is paramount. Optical communication systems, which leverage light to transmit data, have become the backbone of modern telecommunications, data centers, and enterprise networks due to their high bandwidth, low latency, and immunity to electromagnetic interference. Within this ecosystem, the Optical Bypass Module (OBM) plays a pivotal role in ensuring network resilience and operational continuity.

An Optical Bypass Module is a specialized device used in optical communication networks to maintain network connectivity in the event of a failure, such as a power outage or equipment malfunction, at a specific network node. The primary function of an OBM is to reroute optical signals around a faulty node, ensuring uninterrupted data transmission without the need for active intervention. This capability is critical in mission-critical applications, such as telecommunications, data centers, and industrial automation, where downtime can result in significant financial losses or operational disruptions.

The Fiber Bypass Module operates by switching optical signals from the primary path to a bypass path when a failure is detected. This is typically achieved using optical switches, which are either mechanical or MEMS (Micro-Electro-Mechanical Systems)-based, depending on the design. These switches redirect the optical signal to an alternate route, bypassing the failed node, and then restore the original path once the issue is resolved. Unlike electrical bypass solutions, optical bypass modules work entirely in the optical domain, eliminating the need for optical-to-electrical conversion, which reduces latency and preserves signal integrity.

Key Features and Functionality

The functionality of an OBM is rooted in its ability to detect faults and seamlessly redirect optical signals. Key features include:

Fault Detection and Switching: OBMs are equipped with monitoring mechanisms that detect power loss, signal degradation, or equipment failure. Upon detection, the module activates the bypass path, typically within milliseconds, to maintain network continuity.

Passive Operation: In many designs, OBMs operate passively in the bypass state, meaning they require no power to maintain the bypass path, making them highly reliable during power outages.

Low Insertion Loss: OBMs are designed to minimize signal loss during normal operation and bypass, ensuring high signal quality across the network.

Compatibility: OBMs are compatible with various network protocols and can be integrated into different optical communication systems, including Ethernet, Fibre Channel, and InfiniBand.

Data Rate Capabilities

Optical bypass modules are designed to support a wide range of data rates to meet the diverse needs of modern optical networks. The supported data rates typically include:

1.25Gbps: Commonly used in Gigabit Ethernet and other low-speed applications, 1.25Gbps OBMs are suitable for legacy systems or applications with moderate bandwidth requirements.

10Gbps: Widely adopted in enterprise networks and data centers, 10Gbps OBMs cater to high-speed applications such as 10 Gigabit Ethernet and Fibre Channel.

40Gbps: These modules support higher-bandwidth applications, such as 40 Gigabit Ethernet, and are often used in data center interconnects and metro networks.

100Gbps and Beyond: With the rise of cloud computing, 5G, and artificial intelligence, 100Gbps OBMs are increasingly deployed in high-performance computing environments and hyperscale data centers. Emerging standards, such as 400Gbps, are also being supported by advanced OBM designs to accommodate future network demands.

The ability to support these data rates ensures that OBMs can be deployed across a variety of network architectures, from small-scale enterprise networks to large-scale telecommunications backbones.

Single-Mode vs. Multi-Mode Optical Bypass Modules

Optical bypass modules are available in both single-mode and multi-mode configurations, depending on the type of optical fiber used in the network.

Single-Mode Optical Bypass Modules: Single-mode OBMs are designed for use with single-mode fibers (SMF), which have a smaller core diameter (typically 9 µm) and support a single light propagation path. Single-mode fibers are ideal for long-distance communication links, such as metropolitan area networks (MANs) and long-haul telecommunications, due to their low attenuation and high bandwidth capabilities. Single-mode OBMs are typically used in applications requiring transmission distances exceeding 1,050 meters (3,440 ft). They are optimized for wavelengths around 1310 nm or 1550 nm, which are standard for long-distance optical communication. These modules are critical for ensuring network reliability in scenarios where signals must travel tens or even hundreds of kilometers without significant loss.

Multi-Mode Optical Bypass Modules: Multi-mode OBMs are designed for multi-mode fibers (MMF), which have a larger core diameter (typically 50 µm or 62.5 µm) and support multiple light propagation paths. Multi-mode fibers are used for short-distance communication links, such as within data centers or enterprise campuses, where high power transmission is required over distances typically less than 1,050 meters. Multi-mode OBMs are commonly used with wavelengths around 850 nm or 980 nm, making them suitable for applications like 10Gbps or 40Gbps Ethernet in data center environments. Their larger core diameter allows for easier coupling with optical transceivers, reducing alignment complexity and cost.

The choice between single-mode and multi-mode OBMs depends on the specific requirements of the network, including transmission distance, bandwidth, and cost considerations. Single-mode OBMs are preferred for long-distance, high-bandwidth applications, while multi-mode OBMs are more cost-effective for short-range, high-power scenarios.

Applications of Optical Bypass Modules

Optical bypass modules find applications across various industries due to their ability to enhance network reliability and performance. Key applications include:

Data Centers: In hyperscale data centers, where high availability is critical, OBMs ensure continuous operation by bypassing failed servers or switches without interrupting data flow.

Telecommunications: OBMs are used in optical transport networks (OTNs) and passive optical networks (PONs) to maintain connectivity in the event of equipment failure, ensuring uninterrupted voice, video, and data services.

Industrial Automation: In harsh industrial environments, OBMs provide robust fault tolerance for optical communication systems used in automation and control networks.

Military and Aerospace: OBMs are deployed in mission-critical systems where reliability and security are paramount, such as in satellite communications and defense networks.

GLSUN is a leading innovator in the optical communication industry, specializing in the development and manufacturing of high-performance optical components and modules.

GLSUN offers customized optical bypass modules supporting data rates of 1.25G, 10G, 40G, and 100G, available in both single-mode and multi-mode configurations.

What is a Tunable Optical Filter(TOF)?

Optical communication systems rely on the precise management of light to transmit data efficiently. Among the technologies that facilitate this process, Tunable Optical Filters (TOF) stand out as a key innovation. These filters, capable of selectively transmitting or blocking specific wavelengths of light, are instrumental in enhancing the performance and flexibility of optical networks.

Understanding Tunable Optical Filters

Tunable Optical Filters are devices that can dynamically adjust their filtering characteristics to isolate specific wavelengths of light. Unlike fixed filters, which operate at a single wavelength, TOFs offer the versatility to adapt to different wavelengths as needed. This tunability is achieved through various mechanisms, including mechanical adjustments, thermal tuning, or electro-optic effects.

The core components of a TOF typically include a resonant cavity, a tuning mechanism, and a control system. The resonant cavity determines the wavelength selectivity, while the tuning mechanism adjusts the cavity's properties to select the desired wavelength. The control system ensures precise and stable operation, often incorporating feedback loops to maintain accuracy.

Applications in Optical Communication

One of the most prominent applications of Tunable Optical Filters is in Wavelength Division Multiplexing (WDM) systems. WDM is a technique used in fiber optic communications to transmit multiple signals simultaneously over a single optical fiber. Each signal is carried on a different wavelength, and TOFs play a crucial role in separating these wavelengths at the receiver end. This capability enhances the capacity and efficiency of optical networks, enabling high-speed data transmission over long distances.

TOFs are also integral to the development of Photonic Integrated Circuits (PICs). PICs integrate multiple photonic functions onto a single chip, similar to electronic integrated circuits. Tunable filters in PICs allow for dynamic reconfiguration of optical paths, enabling adaptive signal processing and routing. This flexibility is essential for next-generation optical networks, which demand high bandwidth and low latency.

Benefits of Tunable Optical Filters

The primary advantage of Tunable Optical Filters is their adaptability. By dynamically selecting wavelengths, TOFs can optimize the performance of optical systems in real-time, adapting to changing network conditions and user demands. This adaptability translates into improved spectral efficiency, reduced crosstalk, and enhanced signal quality.

Moreover, TOFs offer cost-effective solutions for optical networking. Traditional fixed filters require multiple components to cover a range of wavelengths, increasing complexity and cost. In contrast, a single TOF can replace multiple fixed filters, simplifying system design and reducing operational expenses.

Conclusion

Tunable Optical Filters represent a transformative technology in the field of optical communication. Their ability to dynamically select wavelengths offers unparalleled flexibility and efficiency, making them essential for modern optical networks. As research and development continue to push the boundaries of TOF technology, we can expect even more innovative applications and improvements in optical signal processing. The future of optical communication is bright, and Tunable Optical Filters are at the forefront of this technological revolution.

 As data traffic continues to grow, the need for adaptive and efficient optical systems will become increasingly critical. Tunable Optical Filters are poised to meet this challenge, driving the next wave of innovation in optical communication.

How does LCoS-based WSS compare to MEMS-based WSS?

Wavelength Selective Switches (WSS) are critical components in modern Reconfigurable Optical Add-Drop Multiplexers (ROADMs) used in dense wavelength-division multiplexing (DWDM) networks. Two primary technologies dominate WSS implementations: Liquid Crystal on Silicon (LCoS) and Micro-Electro-Mechanical Systems (MEMS). Each has distinct advantages and trade-offs in terms of performance, scalability, and cost.

Liquid Crystal on Silicon (LCoS) technology employs a reflective spatial light modulator (SLM) in which liquid crystal cells modulate light phase based on an electrical signal. This enables dynamic wavelength control and beam steering without mechanical movement.

Micro-Electro-Mechanical Systems (MEMS) technology, on the other hand, utilizes micromirrors to physically redirect optical signals to different output ports. The micromirrors can tilt in multiple directions, offering precise control over wavelength routing.

LCoS vs. MEMS-Based WSS

LCoS-based WSS offers highly flexible and fine-grained wavelength selection, as it can control phase modulation at the pixel level. This enables arbitrary spectral shaping and dynamic reconfiguration of channel bandwidths, making it ideal for flexible-grid DWDM networks. In contrast, MEMS-based WSS relies on fixed passbands with predefined filter shapes, making it less adaptable to dynamic spectrum allocation but well-suited for standard fixed-grid networks.

In terms of insertion loss and optical performance, LCoS-based WSS generally exhibits higher insertion loss due to diffraction effects and polarization sensitivity, requiring additional polarization diversity optics. MEMS-based WSS, however, benefits from lower insertion loss and polarization-dependent loss (PDL), as it primarily relies on direct reflection with minimal optical path complexity.

Switching speed is another key differentiator. LCoS-based WSS has a response time in the millisecond range due to the liquid crystal switching dynamics. However, since it has no moving parts, it offers excellent long-term reliability. MEMS-based WSS, in contrast, provides much faster switching in the microsecond range, making it suitable for latency-sensitive applications, although its mechanical components introduce potential long-term wear concerns.

Scalability is where LCoS-based WSS holds a strong advantage. With its two-dimensional beam steering capability, it can support a higher number of ports and easily scale to high-degree ROADMs. MEMS-based WSS, while effective for moderate port counts, faces limitations due to the physical size of micromirror arrays, making high-port-count implementations more challenging.

When it comes to cost and complexity, LCoS-based WSS has a higher initial cost due to the sophisticated control electronics and polarization management required. Additionally, its operation relies heavily on software for beam steering and wavelength control. MEMS-based WSS, on the other hand, has a lower manufacturing cost per unit, benefiting from mature MEMS fabrication processes. Its simpler hardware design also results in a potentially lower overall system cost.

Application Considerations

Both LCoS-based and MEMS-based WSS technologies offer unique advantages that cater to different optical networking requirements. LCoS-based WSS provides superior spectral flexibility, higher scalability, and adaptability to flexible-grid architectures but comes with higher cost and insertion loss. MEMS-based WSS, in contrast, excels in low insertion loss, fast switching speed, and cost-effectiveness, making it ideal for latency-sensitive and budget-conscious applications. The choice between these technologies ultimately depends on network operators' specific needs regarding spectral control, performance, and scalability.

What is MEMS Variable Optical Attenuator (VOA)?

MEMS VOA, which stands for Micro-Electro-Mechanical Systems Variable Optical Attenuator, is a type of optical component that utilizes microelectromechanical systems technology to precisely control the intensity of an optical signal. In simpler terms, it acts like an adjustable optical "knob" that allows for the fine-tuning of the amount of light passing through it.

The core component of a MEMS VOA is a micro-mirror or a micro-shutter, which is fabricated using advanced semiconductor manufacturing techniques. This micro-mirror or micro-shutter can be precisely controlled to adjust the amount of light passing through the optical fiber.

The working principle of MEMS VOA is based on the mechanical movement of the micro-mirror or micro-shutter. When an electrical signal is applied, the micro-mirror or micro-shutter moves, altering the path of the light beam. This movement can either increase or decrease the attenuation of the optical signal, thereby controlling the light intensity. The precision and speed of this mechanical movement are key factors that determine the performance of the MEMS VOA.

MEMS VOAs are categorized based on the type of fiber they support or their design characteristics:

Single-Mode MEMS VOA: This type is designed for single-mode optical fibers, which are commonly used in long-distance and high-speed communication systems. Single-mode MEMS VOA features low insertion loss and high attenuation accuracy, ensuring minimal signal distortion and high transmission efficiency.

Multi-Mode MEMS VOA: This type is suitable for multi-mode optical fibers, which are typically used in short-distance and local area network (LAN) applications. Multi-mode MEMS VOA can handle multiple modes of light propagation, making it versatile for various networking scenarios.

Polarization-Maintaining (PM) MEMS VOA: This type is specifically designed for applications that require maintaining the polarization state of the optical signal. PM MEMS VOA is crucial in systems where polarization sensitivity is a concern, such as in certain types of sensors and specialized communication networks.

MEMS VOA finds extensive applications in various fields, including:

1.) Telecommunications: MEMS VOA is widely used in optical communication systems to control the power levels of optical signals. This is essential for maintaining signal quality and preventing signal degradation over long distances.

2.) Data Centers: In data centers, MEMS VOA is employed to manage optical signal attenuation in high-speed data transmission networks, ensuring efficient and reliable data transfer.

3.) Fiber Optic Sensors: MEMS VOA is utilized in fiber optic sensors to control the intensity of light signals, enhancing the accuracy and sensitivity of measurements.

4.) Medical Imaging: In medical imaging systems, MEMS VOA helps in controlling the light intensity for precise imaging and diagnostic purposes.

MEMS VOA is a revolutionary technology that has transformed the landscape of optical communication and sensing. Its precise control over optical signal attenuation makes it an indispensable component in modern telecommunications, data centers, fiber optic sensors, and medical imaging systems.
